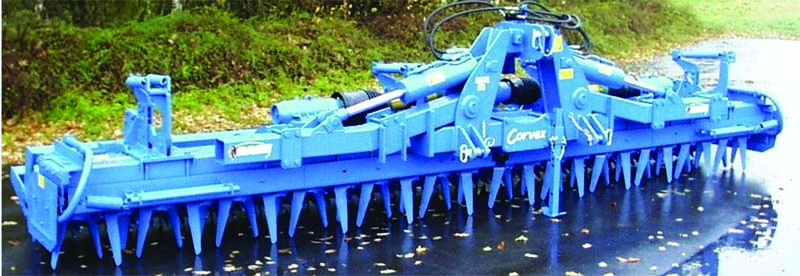

Mounted rotary harrows model Corvus VKE manufactured by RABE (Germany)

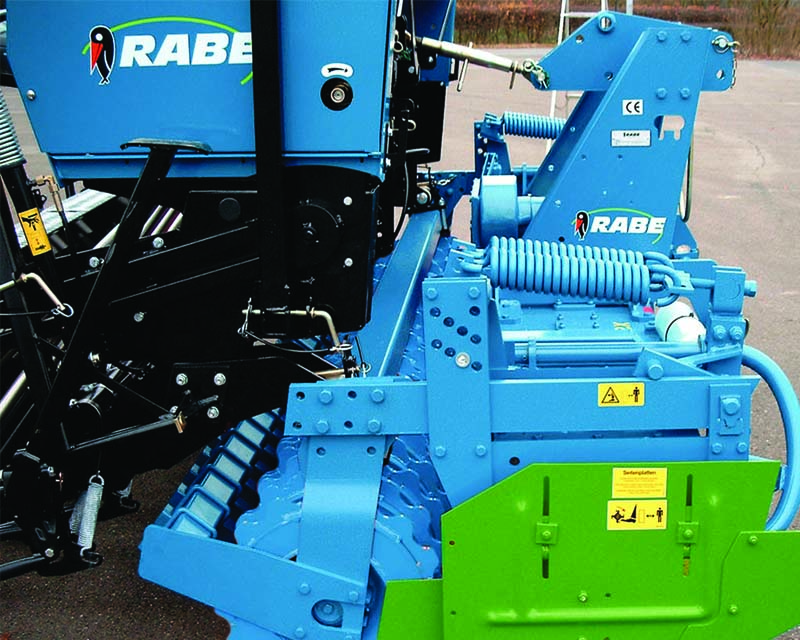

Designed for pre-sowing tillage for vegetables and all types of crops. It is possible to work together with the MEGASEED seeder. Knife holders are circular (4 per meter), front segment protection (option). Effective protection of bearing units. High and shifted back cardan mount on the central box (small angle of the cardan). The blade nuts are protected above the blade holders. A single forged piece makes up the knife holder and its drive shaft. System of fast replacement of knives Multi-Fix. Blades in the rear position require little traction, do not pick up stones, and the harrow can lift up over obstacles. Hardfacing (Rabbid), Rabe patent. Significant increase in the service life of parts. Reducing the cost of wear parts per 1 hectare. Side plates made of spring steel, with lateral deflection, especially effective on stony soils.
The return spring acts as a rock guard and is easily retracted over rocks. Possibility to additionally equip with a three-point hitch for hitching behind the harrow of the seeder.

Basic equipment:

• Bearing protection and knife attachment
• Hydraulic locking system
• Three position switch
• Folding side plates
• Torque Limit Clutch Shaft (1 ¾, 6 Pieces) with Side Drive Guard
• KG-41 Knife (bolted)
• 4 pairs of knives per meter of working width
• Speed — 1000 rpm
• Reinforced scrapers for Ripa-O mulching roller
• Category III adjustable hitch

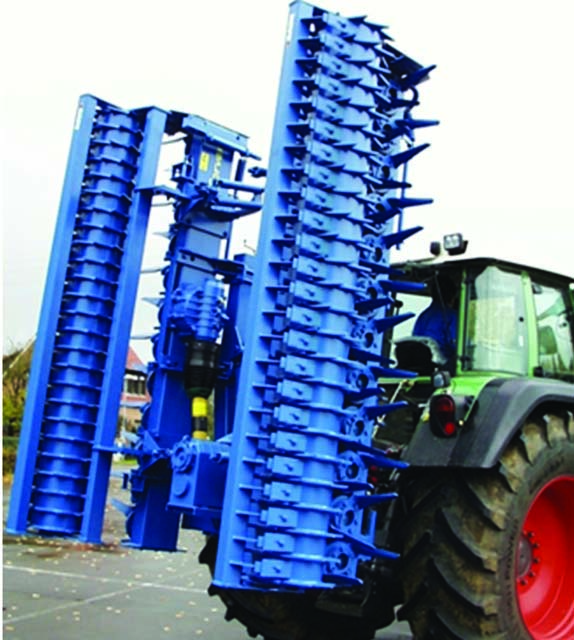

• К-version — folding
