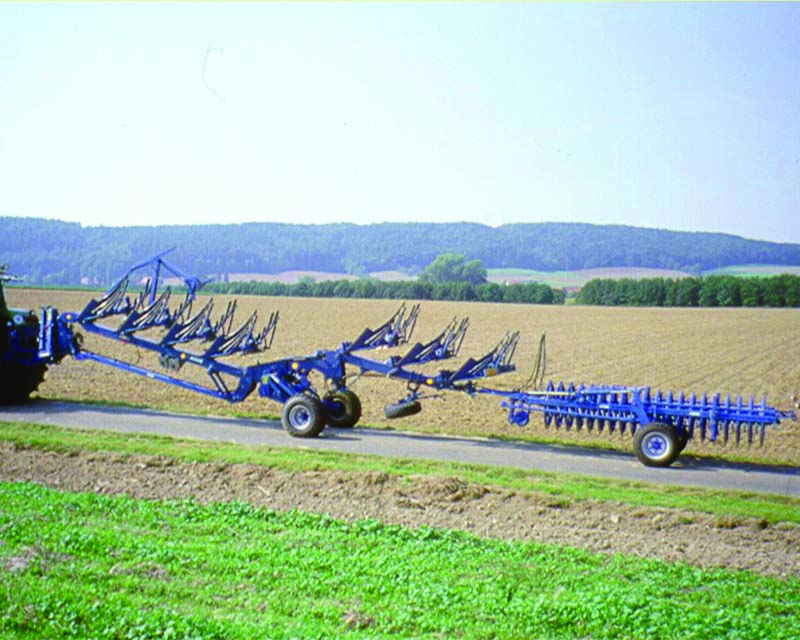

Semi-mounted plows model MARABU produced by RABE (Germany)

Semi-mounted reversible plow for working on standard and heavy soils. Designed for plowing both heavy and light, sandy soils. Consists of two frames. Plow settings (dumps, skimmers, frame inclination, depth control, share protection) allow you to adapt the plow to any tractor and use it when working on stony soils. The NON-STOP hydraulic protection system (optional) allows you to increase the productivity of the plow due to its continuous work in the field. Additionally, shear bolt protection is installed to prevent breakage of the rack. The NON-STOP system has the ability to adjust the response pressure. Patented frame and strut design withstands peak loads without compromising size. All components for working on heavy soils are installed in the basic configuration. Possibility to use with rollers. Excellent maneuverability due to the articulated frame. Possibility to equip with a trolley for working outside the furrow for a tractor without a three-point hitch.

Basic equipment:

• Bit force 2300 kPa
• Frame 180x180x10 mm

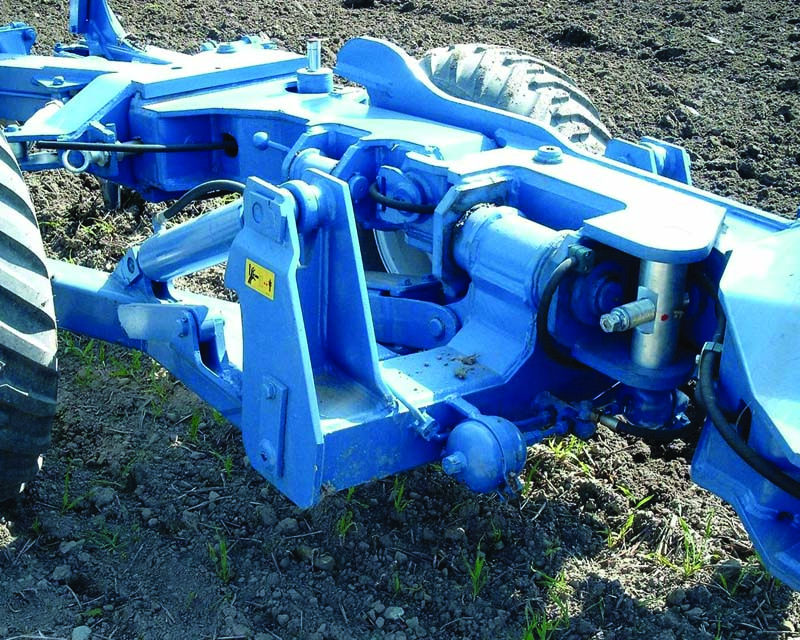

• Non-stop hydraulic protection – hydroAvant (HA) + shear bolt protection for each body
• 100 cm spacing
• Working width: stepless, hydraulically adjustable
• Distance under the frame 80 cm
• Hydraulic turnover system
• Category III: III and IV shortened category on request
• 2 wheels 400/60 14 pr (Ø 875×405)
• Rear depth control wheel D2 10.0/75-15 (Ø 760×265)
• Mechanical sideshift adjustment
• Hydraulic shock absorber as standard
• Standard equipment: hard coated shares (Plasmabid) or shares with bolt-on chisel
