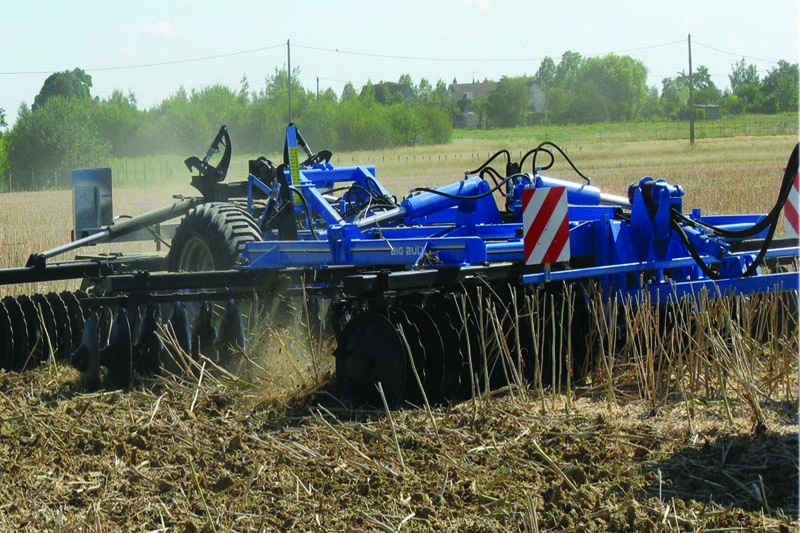

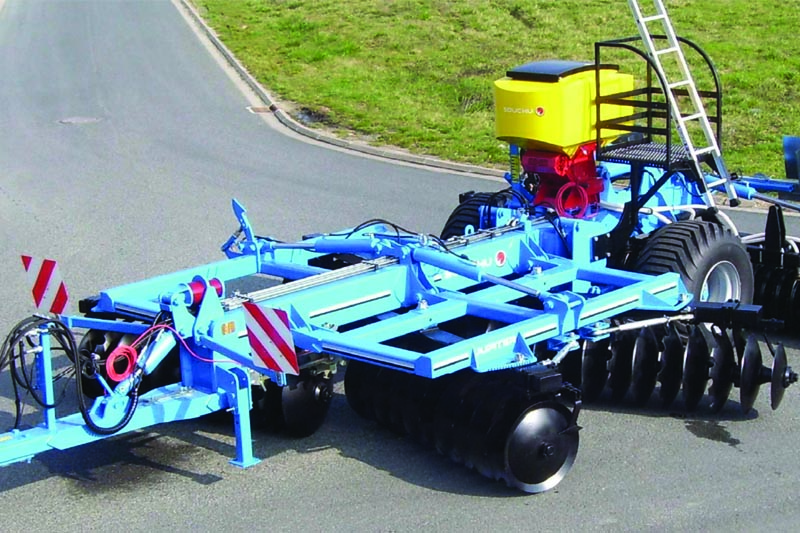

Trailed heavy X-shaped disc harrows model SEEADLER manufactured by RABE (Germany)

Designed to work in harsh conditions using both minimal and classical technology. During work, high-quality cutting of the working layer and mixing of crop residues with soil are performed. Patented triple protection of bearing units. Adapted to work on heavy loamy soils.

Basic equipment:

  • Chassis: monobeam tube 200x100x10

  • Side frames: 180x100x8

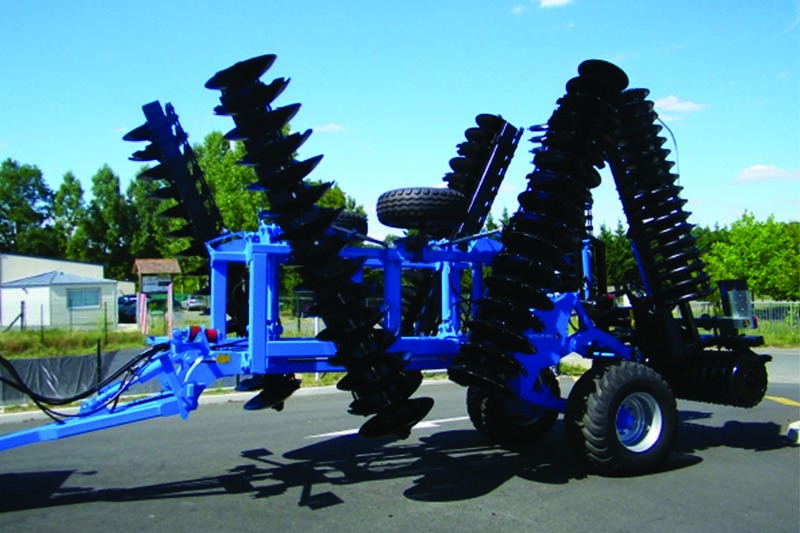

  • Transport position: vertical folding — 2.90 m
  • Carrier axle: 15 R 22.5 or 385/65 R 22.5 TZA wheels
  • Brake: hydraulic
  • Locking: hydraulic
  • Folding: hydraulic 2-bolt up to 48 discs and beyond
  • Shaft: 40 mm square
  • Double taper bearings with triple protection
  • Alternating mounting discs (smooth + serrated) Ø 660mm/6mm
  • Spreading disc
  • Rear smoothing disc
  • Space between discs 230
  • Pin hitch or tractor lower hitch II
    or category III
  • Hydraulic drawbar compensation
  • Rod roller 600 mm
  • Disk Batteries Lock

Name

Working

width, m

Weight, kg

Number
bearing units

Number of disks

Tractor power, l
c

BB 40
C2

5,0

6225

10

40

150–250

BB 44
C2

5,4

6725

12

44

150–260

BB 48 C2

5,8

7225

12

48

155–285

BB 52 C2

6,2

7725

12

52

160–300

BB 56 C2

6,6

8335

16

56

170–325

BB 60 C2

7,0

8535

16

60

180–355

BB 64 C2

7,4

9035

16

64

190–365
