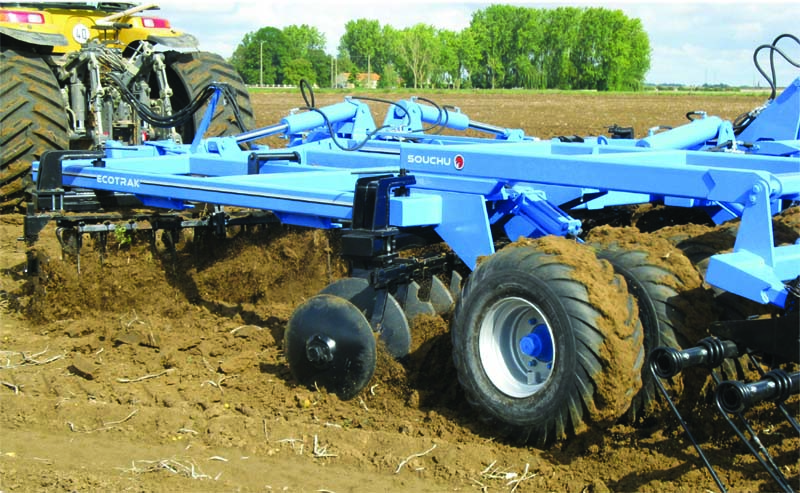

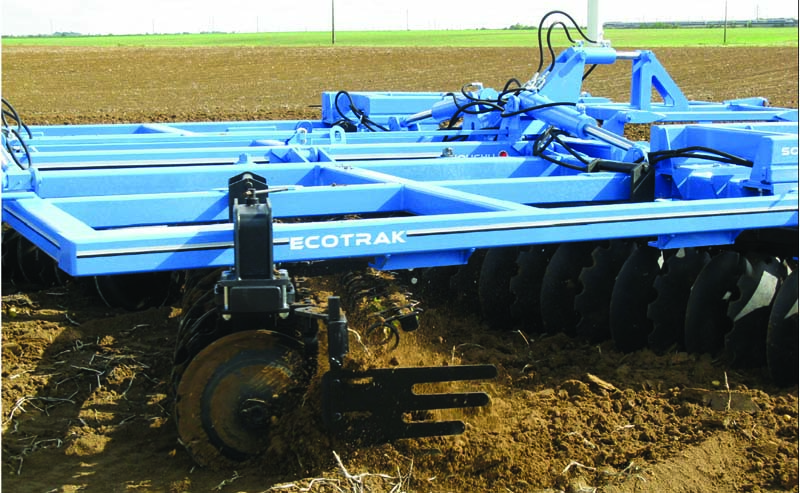

Trailed disc heavy combined X-shaped harrows model ECOTRAK manufactured by RABE (Germany)

Designed to work in harsh conditions with both minimal and classical technology. During work, high-quality cutting of the working layer and mixing of crop residues with soil are performed. Patented triple protection of bearing units. Adapted to work on heavy loamy soils. Good performance in wet conditions. Additional pneumatic rollers evenly compact the soil. The rear three-row harrow allows you to achieve excellent results in the distribution of crop residues.

Basic equipment:

• Chassis: monobeam tube 200x100x10
• Transport position: vertical folding — 3.00 m
• Transport position: vertical folding — 3.00 m
• Carrier axle: low pressure wheels 400/60×15-14 — axle 70mm
• Brake: hydraulic
• Locking: hydraulic
• Folding: hydraulic 2-bolt up to 48 discs and beyond
• Shaft: 40 mm square
• Double taper bearings with triple protection
• Alternating mounting discs (smooth + serrated) Ø 660mm/6mm
• Spreading disc
• Rear smoothing disc
• Pin hitch or bottom hitch of Category II or III tractor
• Hydraulic drawbar compensation — hydraulic shock absorber
• Hydraulic pressure adjustment of the rear pneumatic roller
• Disc battery lock
