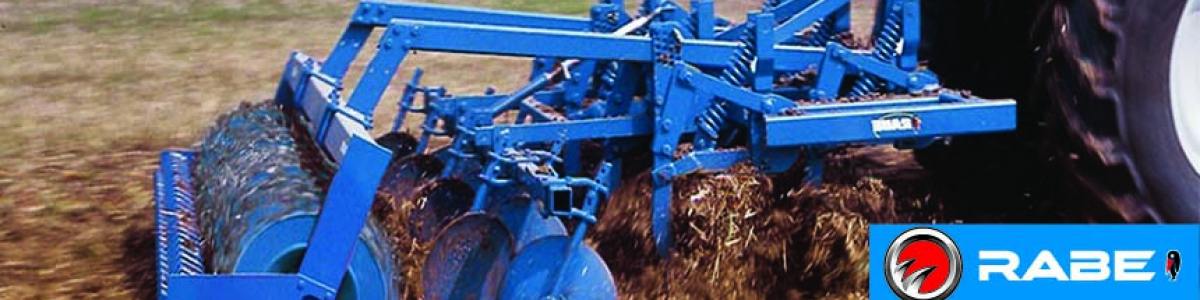

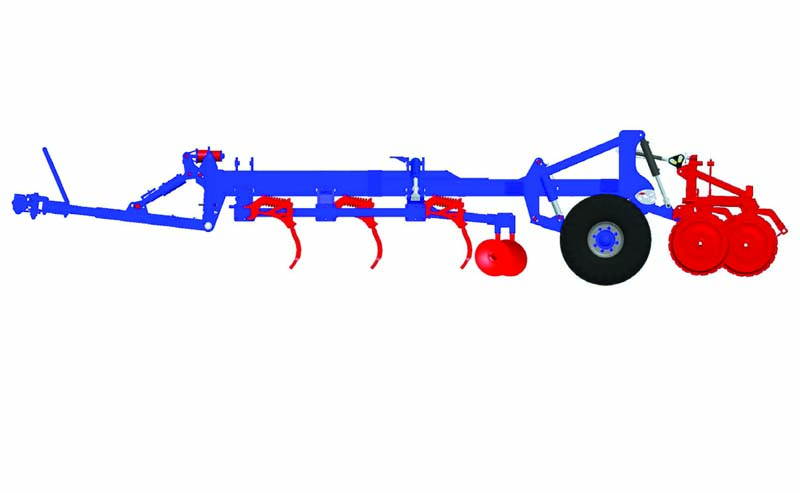

Mounted cultivators COMBITILL model made by RABE (Germany)

Designed to work in heavy conditions for basic tillage. Uniform cutting, good mixing, the possibility of continuous overlap and high-quality undercutting. A wide range of press rollers (single tubular, double tubular and lamella, heavy cast iron) to achieve the optimal processing result.

Basic equipment:

• HITCH — on the hitch lever of a category II and III tractor or a hinged ring
• DRAWL CYLINDER— hydraulic compensation with shock absorber
• CENTRAL FRAME— monobeam tube 300x200x10mm
• SIDE FRAMES— 150x100x8 mm
• FRAME— Designed for heavy residue handling, 700mm frame spacing, 3 beams, 800-1000mm spacing between beams, 230mm fluke spacing
• FOLD– vertically with 4 hydraulic cylinders, in transport position 2.7 m wide
• LOCK— to transport position with locking valve
• AXIS— 80 mm square
• WHEELS— 2 wheels 15 R 22.5 or 385/65 R 22.5, 552721 fitted with 10.0/75×15.3 front wheels


• SUSPENSION— hydraulic bogie
• REAR HITCH— mechanical, possibility to attach a roller
• EUROCHISEL® SHEETS — forged steel, Edge-on profile (narrow profile for less tractor pulling power), NON-STOP spring protection: actuation at a load of 340 kg. Working body: direct quick-detachable paw.
• Machining depth up to 25 cm
