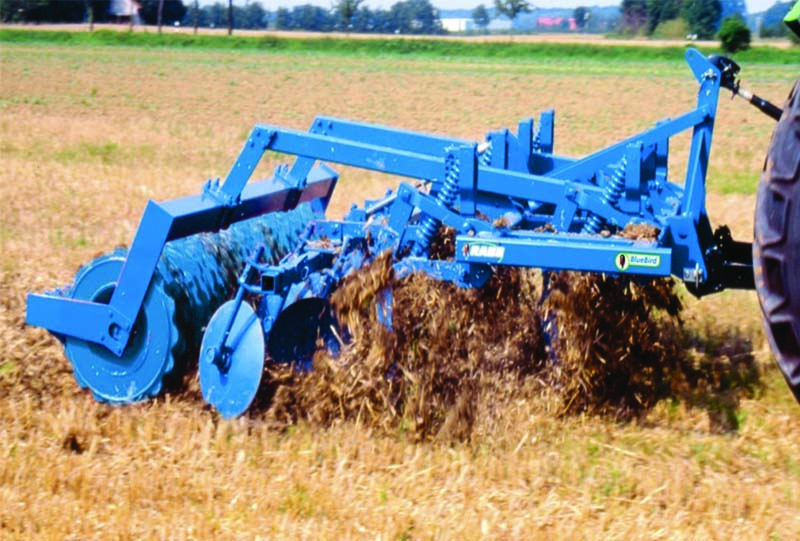

Mounted cultivators model BLUEBIRD made by RABE (Germany)
Designed to work in harsh conditions, both minimal and classic technology. Uniform cutting, good mixing, the possibility of continuous overlap and high-quality cutting. A wide range of press rollers (single tubular, double tubular-lamellar, heavy cast iron), allowing you to achieve the optimal processing result.
Basic equipment:
- Shear bolt protection (GH) or non-stop spring protection (GH/F) — without rollers and discs
- Shear bolt protection (GH) or non-stop spring protection (GH/F) — without rollers and discs
- Double heart tip with detachable side wings
- 2 rows of loosening shares
- The distance between the legs is 45 cm for GH/F 3 m and 50 cm for GH/F 5 m, 6 m
- Frame height — 75 cm (GH) and 80 cm (GH/F)
- Hydraulic folding GH/F 5000 K and 6000 K
- Processing depth up to 25 cm
- Hydraulic valve
- Transport width — 3.0 m
- Category II hitch for GH 3000
- Category III short hitch GH 5000 K
- Category III hitch for GH 6000 K
BLUEBIRD |
3000 |
5000K |
6000K |
Working width, m |
3,0 |
5,0 |
6,0 |
Tractor power, l s |
190 |
260 |
300 |
Number of racks |
7 |
11 |
13 |
Stand spacing, cm |
43 |
45 |
45 |
Weight with shear bolt protection, kg |
1006 |
2033 |
2348 |
Weight with protection non—stop, kg |
1258 |
2429 |
2816 |
Stand height, cm |
75/80 |
75/80 |
75/80 |
Max. working depth, cm |
25 |
25 |
25 |
