DRACULA cultivator by Maschio Gaspardo

This technique is available in the Bryansk and Oryol regions.

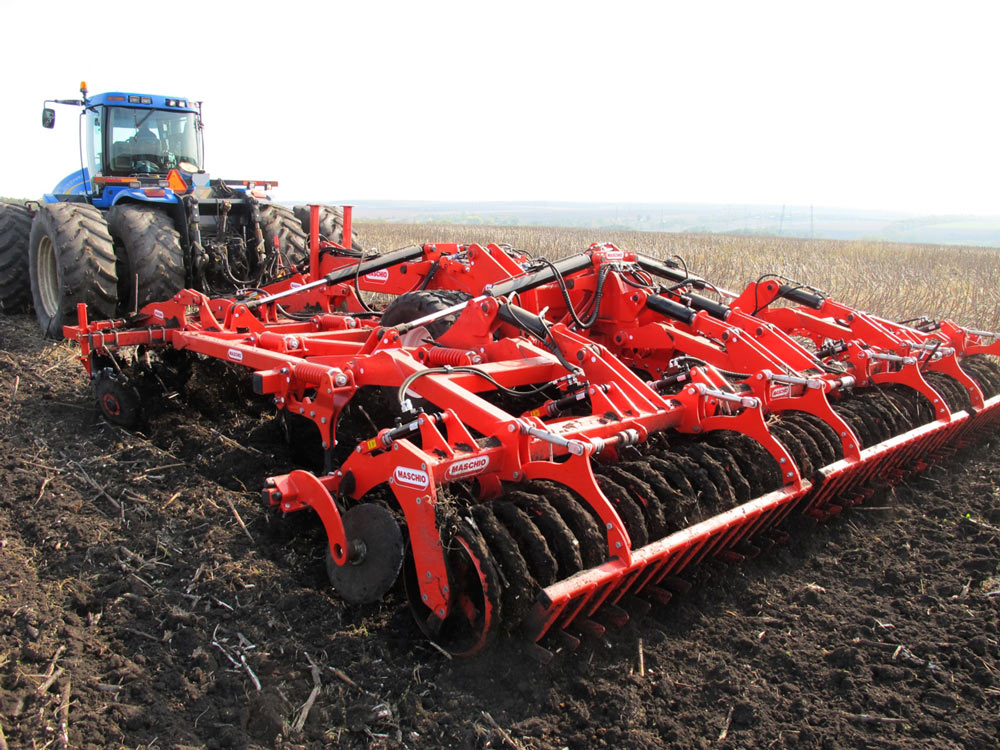

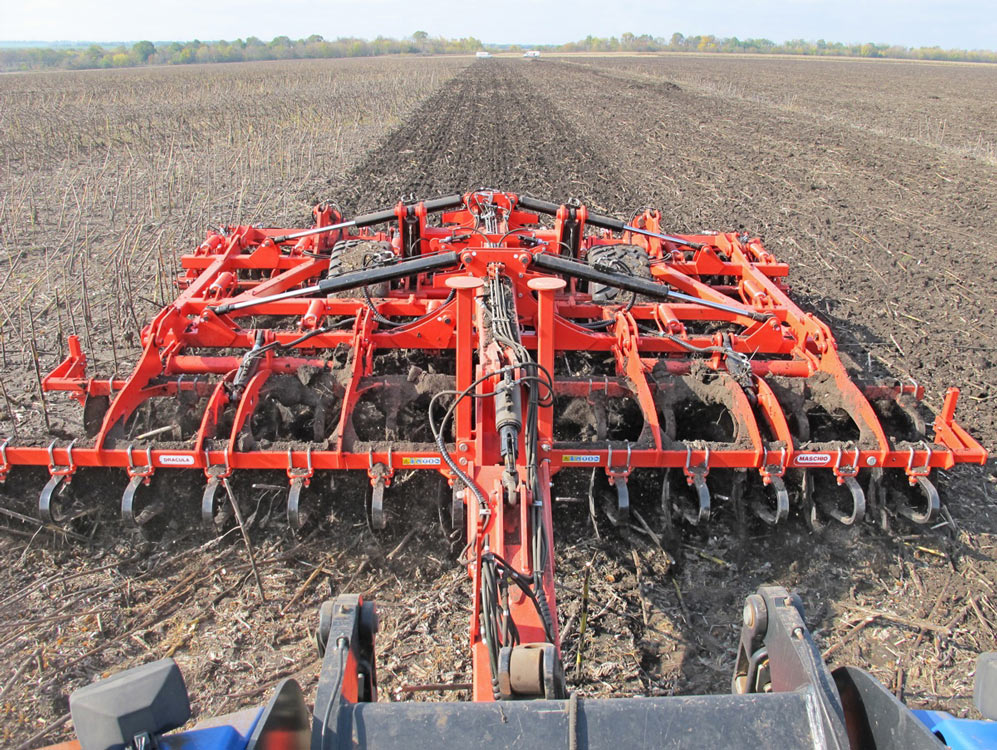

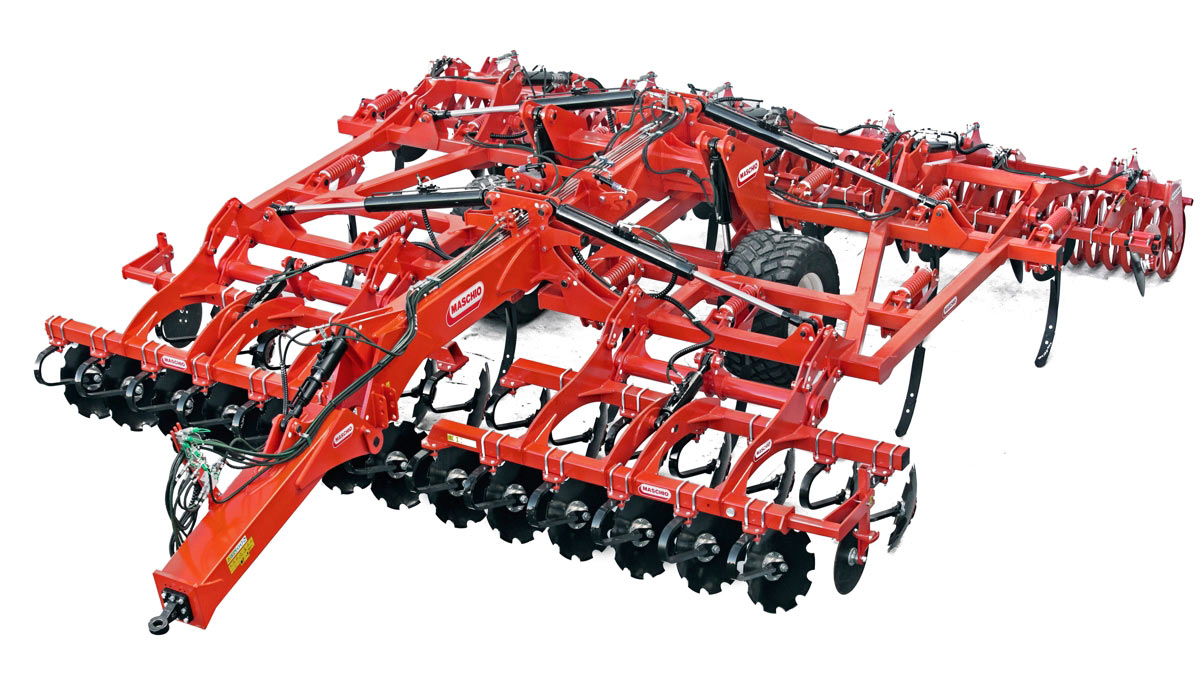

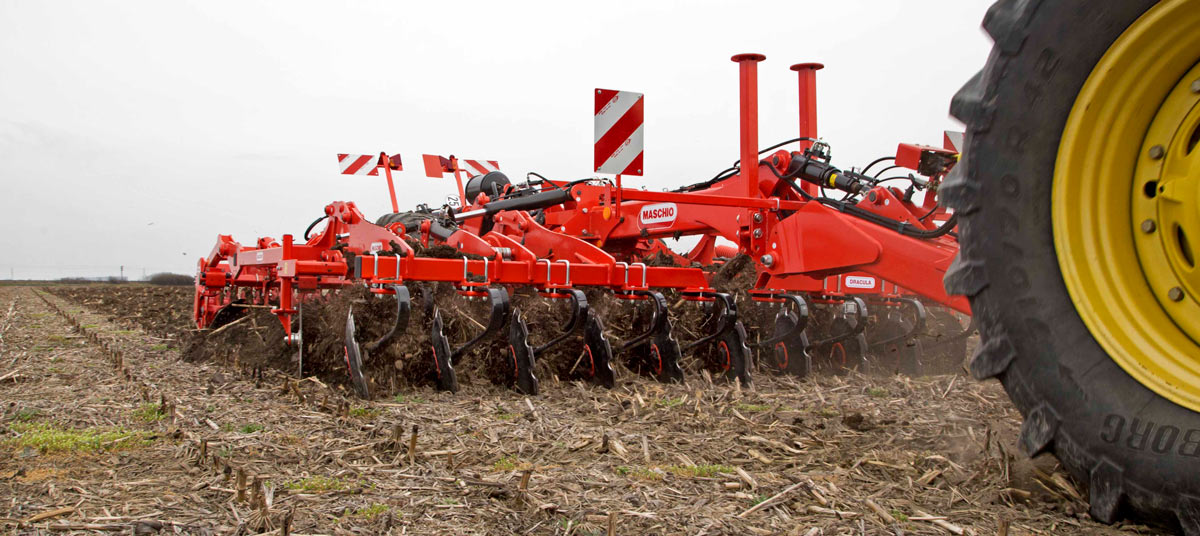

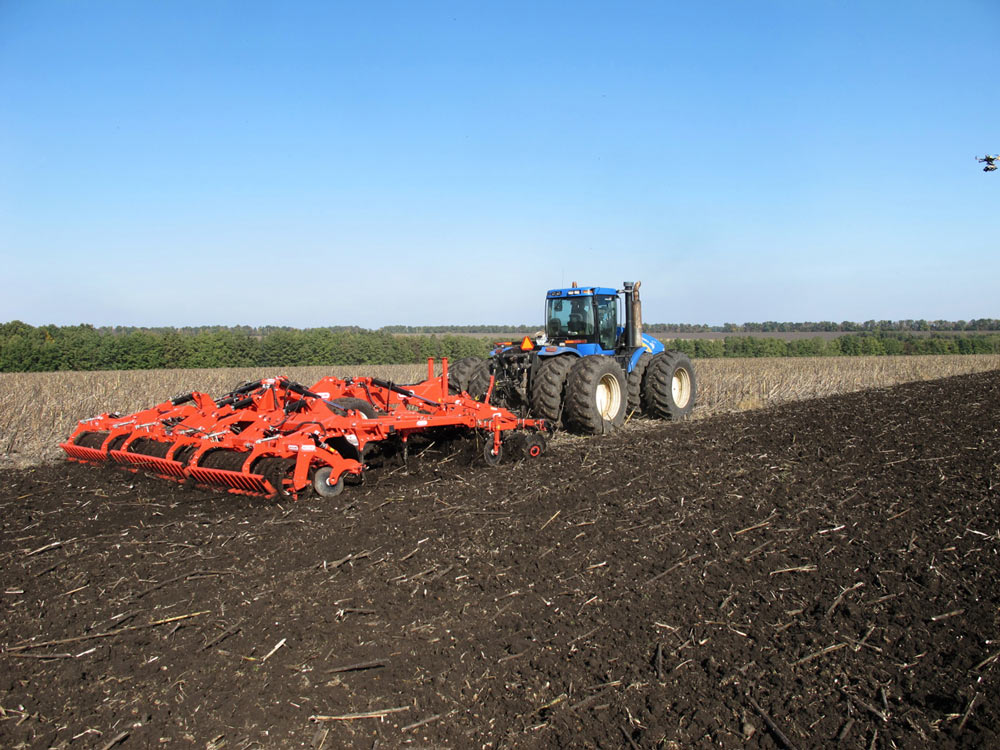

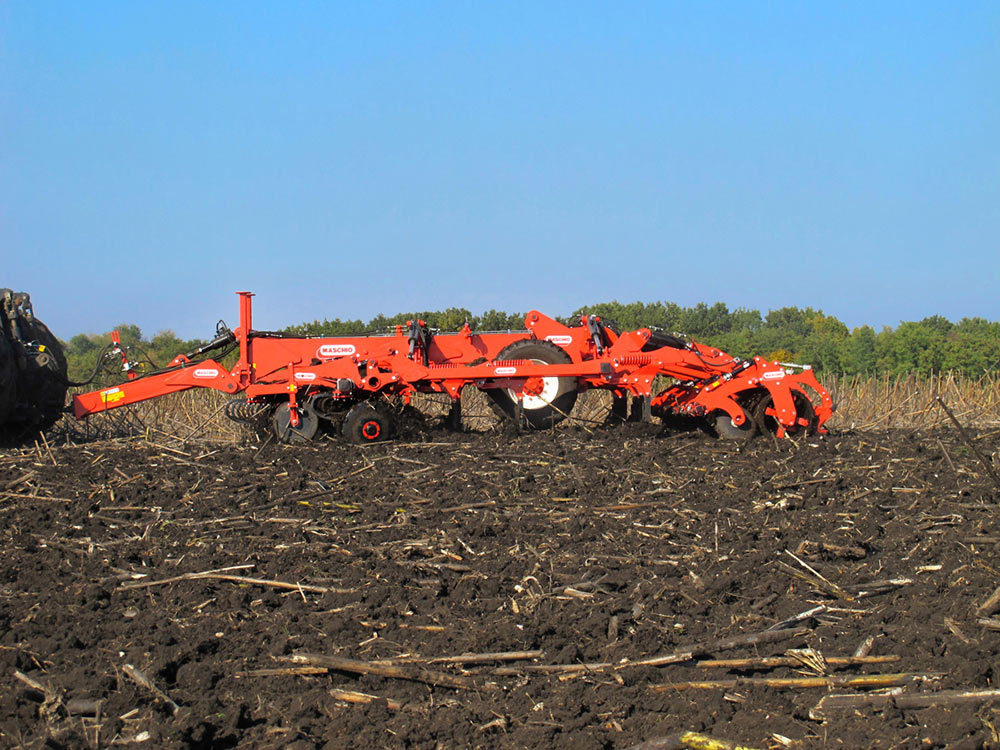

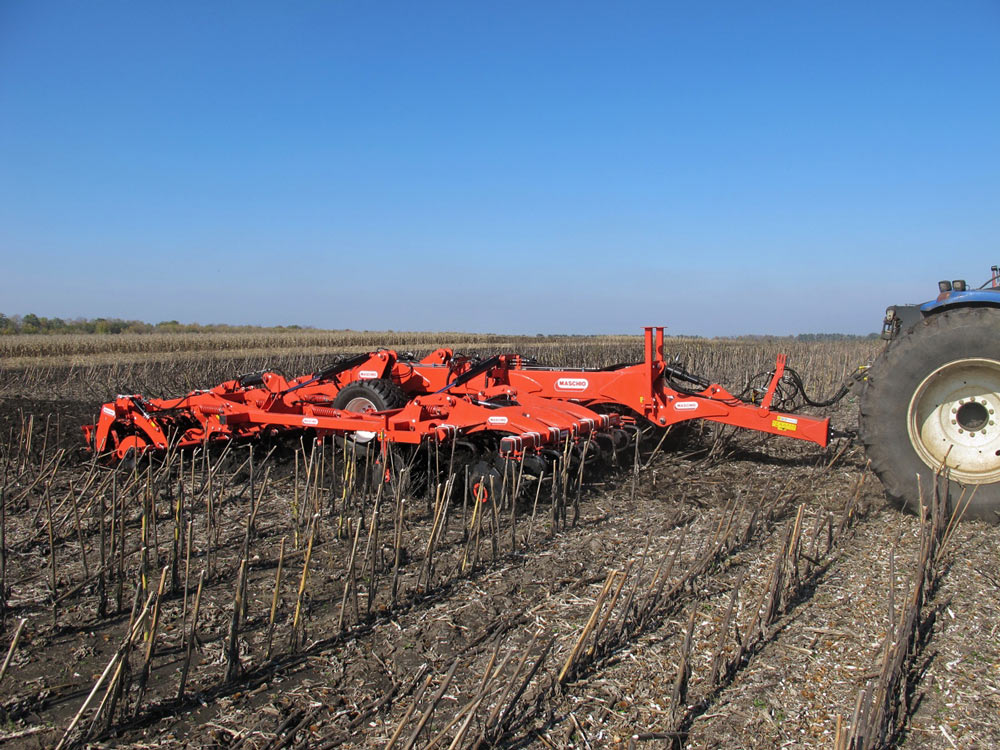

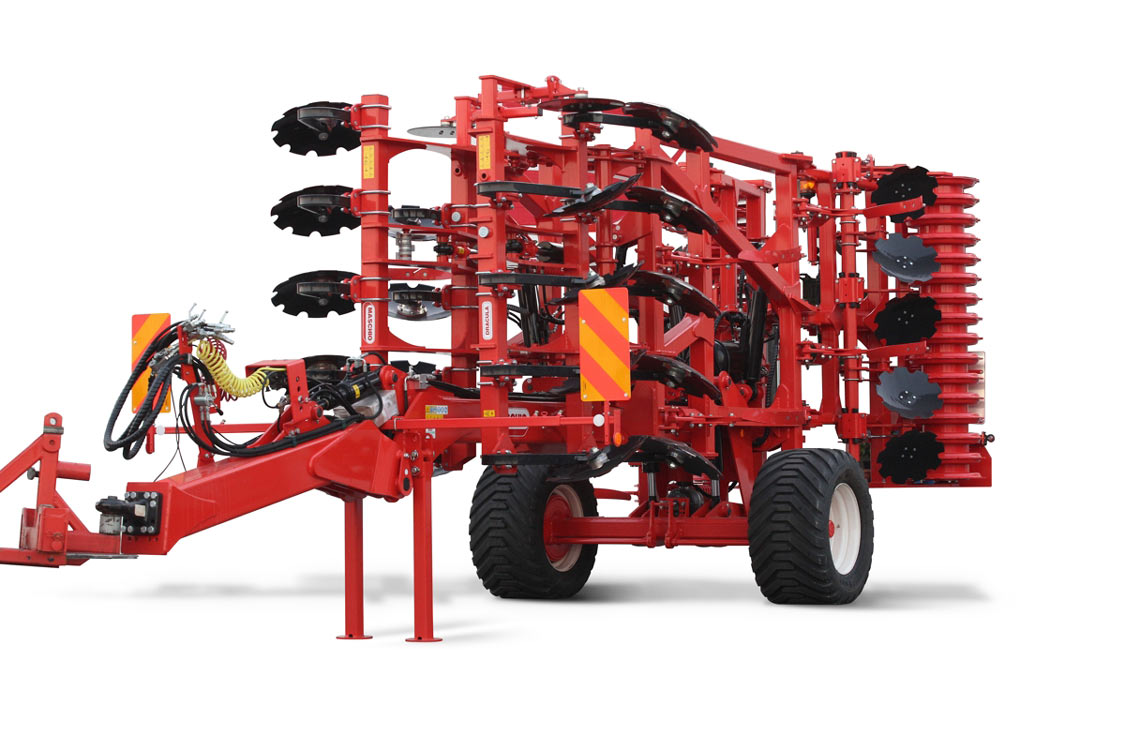

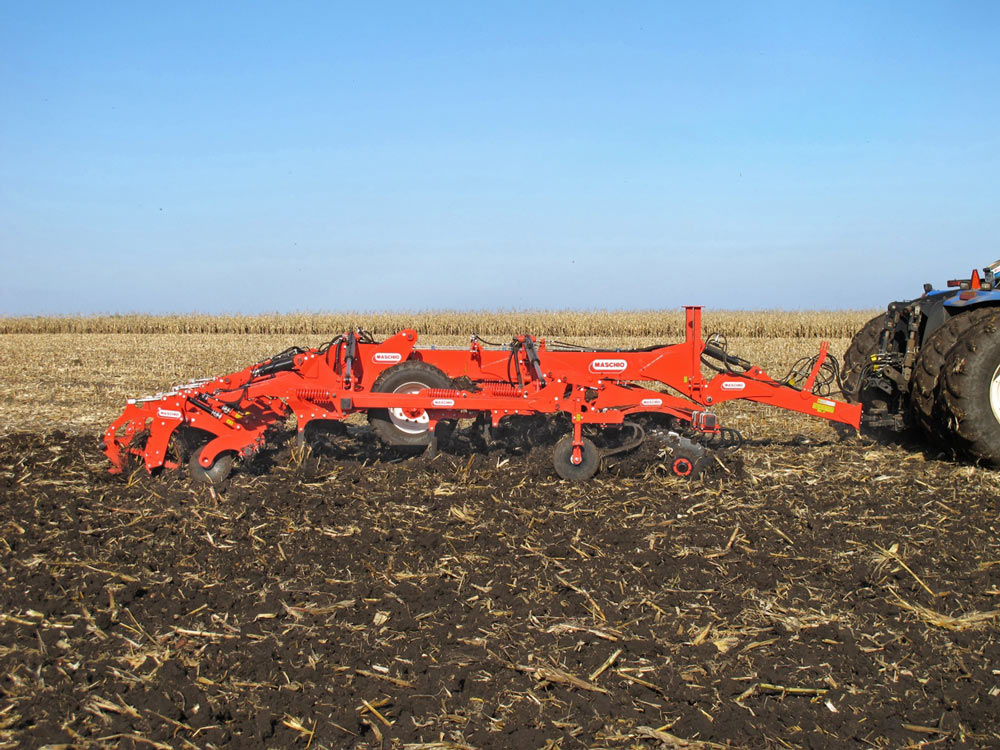

The DRACULA cultivator is an industry-leading machine design that delivers on-the-ground performance and is capable of handling high traction forces. Thanks to the combination of front discs, cultivator tines, leveling bar and rear press roller, the DRACULA cultivator handles any kind of crop residue, gives you the ability to control the degree of soil compaction, level the cultivated field and conduct efficient and economical tillage for further seeding. Using such a cultivator, you will be able to work at a speed of 12 km / h, performing both surface (up to 10 cm deep) and deep (up to 25 cm) tillage. The DRACULA cultivator creates optimal conditions for higher yields and more income!

Soil compaction

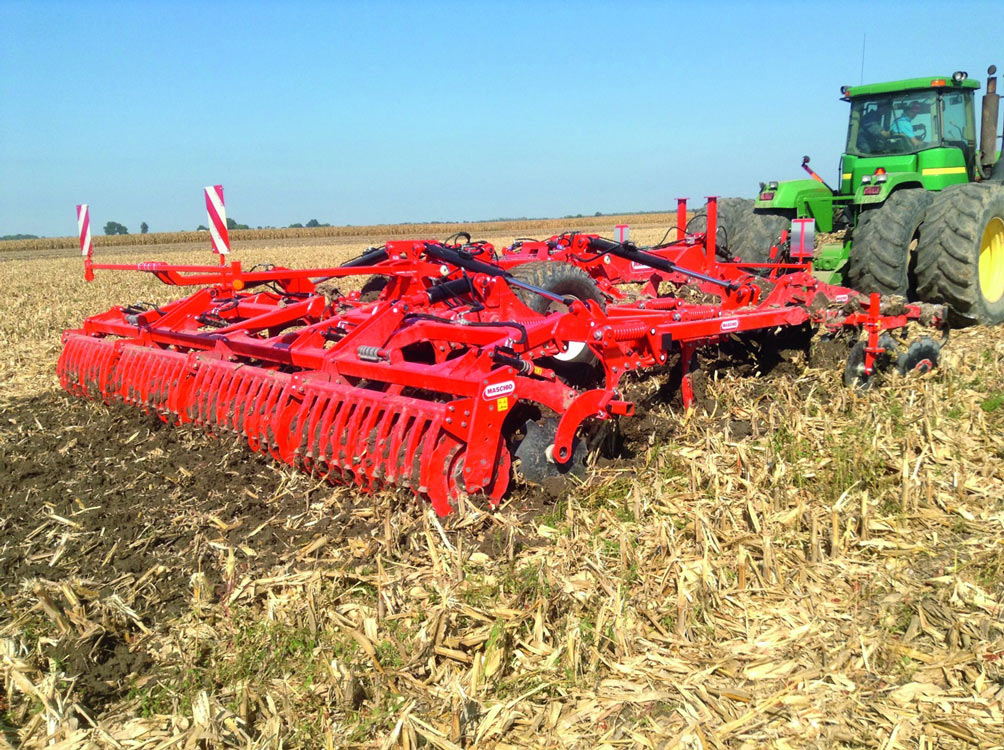

The zone of final tillage by the DRACULA cultivator consists of an annular
roller, which crushes the soil and increases the contact of the sown seeds with it.
Optimal seed-to-soil contact is the key to successful planting, ensuring
fast seed germination. Seed-soil contact can be controlled mechanically or chemically. In addition, with this treatment, the soil retains moisture perfectly.

Cross system

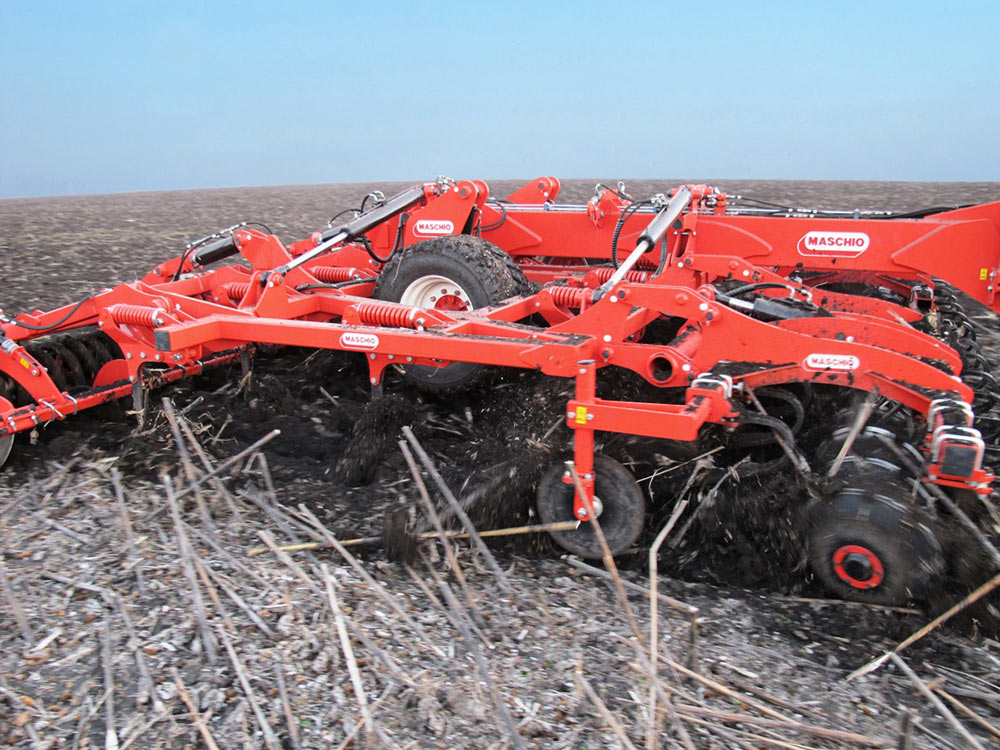

Perfect alignment of the discs guarantees the most uniform tillage throughout the entire depth. The large clearance of the machine (70 cm) and the dense arrangement of narrow discs (40 cm) provide the DRACULA cultivator with the ability to work with crop residues of any size and subsequent high-quality mixing of the chopped mass compared to other machines offered on the modern agricultural equipment market.








DRACULA
Working width, m 4 6

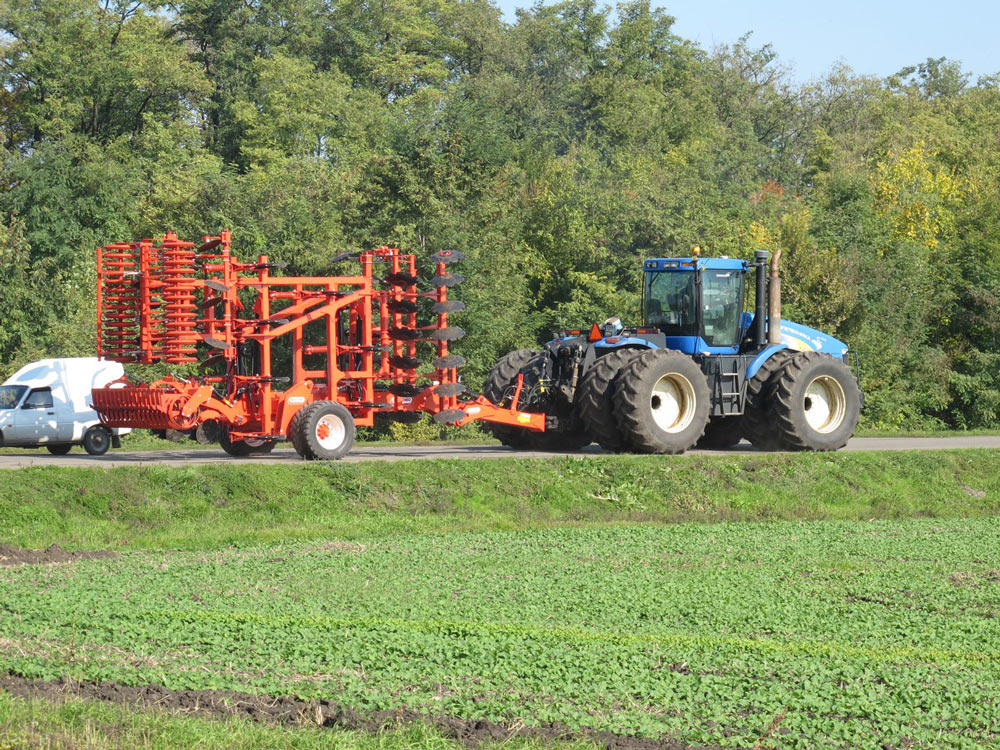

Width in transport position, m 3 3
Height in transport position, m 3 4
Length, m 9 9
Number of disks, pcs. 18 26
Disc spacing, cm 49 49
Number of cultivator sharesv9 13
Spreading of cultivator paws in one row, cm 98 98
Spreading of cultivator paws from each other, cm 49 49
Frame height, mm 90 90
Overall dimensions of the frame, mm 120 x 120 120 x 120
Required power (kW/hp) 206-265/280-360 220-400/330-550
Width of the point spreader of the surface layer, mm 80 80
Roller diameter, mm 600 600
Weight, kg 8000 9500
MIN÷MAX working depth of discs, cm 5 ÷ 15 5 ÷ 15
MIN÷MAX working depth of teeth, cm 5 ÷ 30 5 ÷ 30
