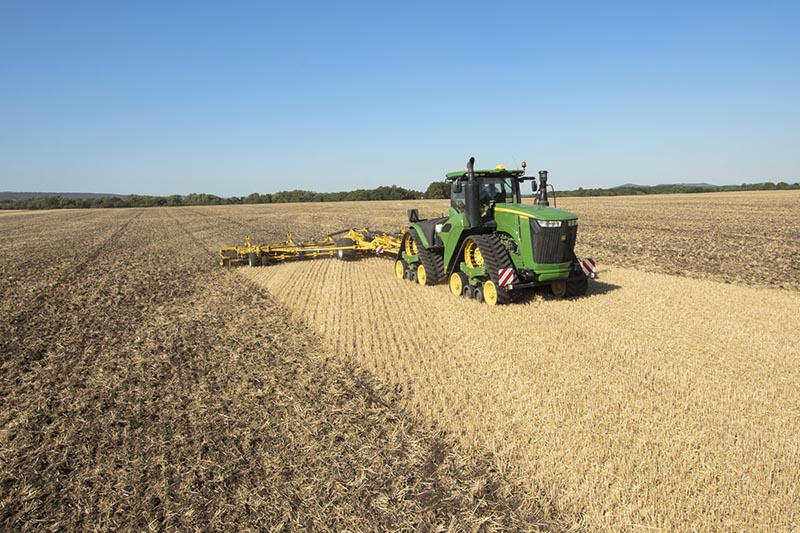

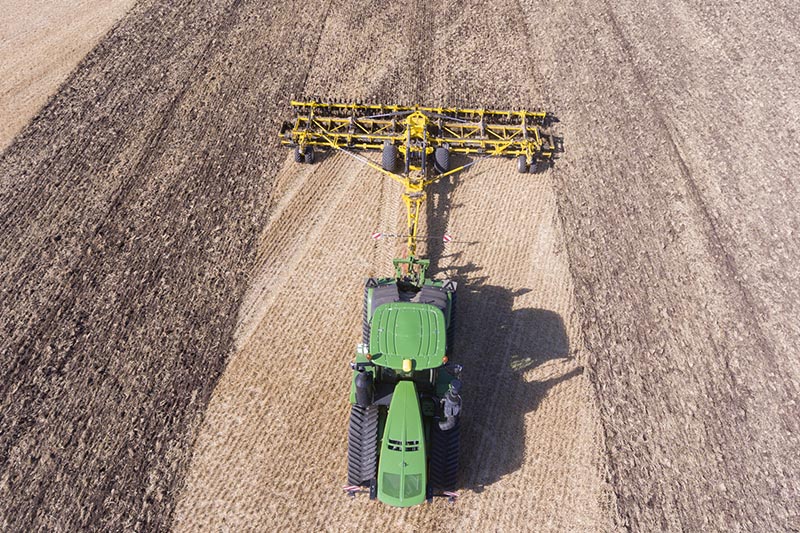

SWIFTERDISC disc cultivator XE_PROFI
The «SWIFTERDISC» is a compact cultivator with a wide drawbar capable of delivering excellent performance and saving costs due to the width of the machine and its high speed.

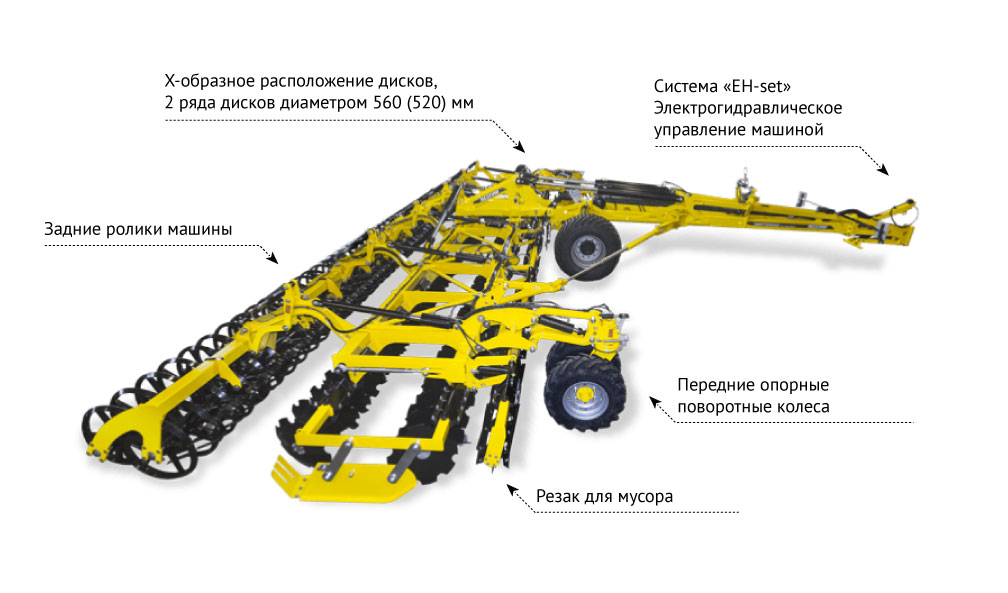

The main advantages of the machine include the X-shaped arrangement of the discs, which prevents the machine from tilting, and the placement of the transport axle in front of the discs. This solution eliminates the slope of the machine during operation. The machine can be equipped with discs with a diameter of 560 mm and a front cutting roller. This constructive design significantly improves the quality of work. Flotation tires reduce ground pressure.
«SWIFTERDISC XE12400 PROFI» is the ideal machine for the «CTF» system (control of the movement of vehicles). The machine follows the tractor precisely.
- High working speed up to 18 km / h due to the constructive construction.
- Disc overload protection (rubber parts).
- Front full-width waste roller
- X-shaped disk. No slope when working.
- Electro-hydraulic control of the machine — «EH-Set» system.
- Front swivel support wheels
- Width of transport vehicle 3 m, height of transport vehicle 4 m
| SWIFTERDISC XE | XE 10000 PROFI | XE 12400 PROFI | |
|---|---|---|---|
| WORKING WIDTH | m | 10 | 12.4 |
| TRANSPORT WIDTH | m | 3 | 3 |
| TRANSPORT LENGTH | m | 7 — 8 | 8 — 9 |
| WORKING DEPTH* | cm | 2 — 14 | 2 — 14 |
| NUMBER OF DISKS | pcs | 80 | 99 |
| RECOMMENDED POWER* | hp | 350 — 450 | 450 — 550 |
| TOTAL WEIGHT** | kg | 9500 — 12000 | 10500 — 13000 |
*depends on soil conditions
**depending on machine equipment
