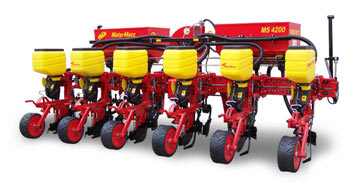

MaterMacc MS 4200 Vacuum Precision Planters
Rigid frame vacuum precision seed drills with Easy-Set system.
The planter is designed for farms that need to change the row spacing using the Easy-Set system (patented by MaterMacc), which allows you to quickly move the racks along the frame without additional tools and efforts in 2.5 cm increments. Minimum row spacing 27 cm

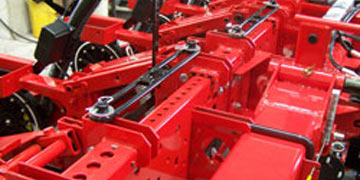

The Easy-Set system allows you to quickly move the row columns along the frame to change row spacing. It takes 2 minutes for each rack. Available with all 8000 and 4000 series racks.
| Number of Rows | Row Spacing | Frame Width | Weight | Wattage Required | Capacity | |||
|---|---|---|---|---|---|---|---|---|
| standard | with fertilizer | seeds | micro | fertilizer | ||||
| (cm) | (cm) | (kg) | (hp ) | (liters) | ||||
| 2 | 75 | 180 | 320 | 430 | 40-50 | 70 | 12 | 2×70 |
| 4 | 75 | 250 | 580 | 770 | 40-60 | 140 | 24 | 2×170 |
| 6 | 45 | 250 | 690 | 850 | 50-70 | 210 | 36 | 2×170 |
| 6 | 75 | 400 | 730 | 890 | 60-80 | 210 | 36 | 2×215 |
| 8 | 45 | 400 | 870 | 1070 | 70-90 | 280 | 48 | 2×215 |
| 8 | 70/75 | 600 | 1110 | 1310 | 80- 100 | 280 | 48 | 4×215 |
| 12 | 45/50 | 600 | 1390 | 1710 | 90- 110 | 420 | 72 | 4×215 |
Easy-Set System
Standard equipment
- Drive shaft
- 21-speed gearbox
- Hydraulic marker
- Seeding disc set
- Vacuum gauge
- Conveyor for collecting the remaining seeds
- Cutting small seeds
- PTO 540 rpm
- Seed Meter Relief Spring Attachment
- FARMFLEX press wheels
- Vehicle movement lever
