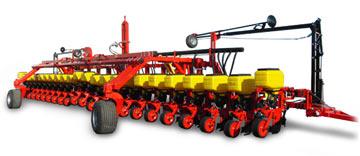

Vacuum precision seeders MaterMacc 3XL 400
Rigid frame vacuum precision seed drills
The seeder is designed for large farms that need to sow large areas of prepared soil. It consists of a transport frame on which two independent seeders are mounted. The frame wheels are both working (for balancing and changing the support pressure) and transport. The transport width of 3.5 meters allows you to comfortably move the planter on roads. The working width can reach up to 16 meters (36 rows). Required tractor power — from 200 to 310 hp.
| Number of Rows | Row Spacing | Frame Width | Weight | Wattage Required | Capacity | |||
|---|---|---|---|---|---|---|---|---|
| standard | with fertilizer | seeds | micro | fertilizer | ||||
| (cm) | (cm) | (kg) | (hp ) | (liters) | ||||
| 16 | 70/75 | 1200 | 6048 | 7148 | 160- 190 | 1120 | — | 4×900 |
| 18 | 70/75 | 1300 | 6204 | 7704 | 180- 200 | 1260 | — | 4×900 |
| 24 | 45/50 | 1200 | 6872 | 8522 | 200- 220 | 840 | — | 4×900 |
| 24 | 70/75 | 1700 | 7272 | 8972 | 240- 280 | 1680 | — | 4×1350 |
| 30 | 45 | 1400 | 7440 | 9240 | 220-240 | 1050 | — | 4×1000 |
| 32 | 45 | 1500 | 7600 | 9450 | 240-280 | 1120 | — | 4×1000 |
| 36 | 45 | 1700 | 8008 | 9808 | 240-280 | 1260 | — | 4×1350 |
Standard equipment
- 4000 Series Row Racks
- Drive wheels size 23×10.5-12
- 21-speed gearbox — 2 pcs
- Vacuum meter
- One set of any seed discs
- Sowing devices for small seeds
- Dispenser emptying device
- Seed containers 70 l
- Monotronic 32 electronic sowing control
