OMEGA OO_FL Planter
OMEGA OO_FL is a versatile seed drill with disc soil preparation that allows you to sow various types of crops with a large change in the amount of seeding, both in a traditional technological system (ploughing) and in a minimization system with the ability to additional soil fertilization.

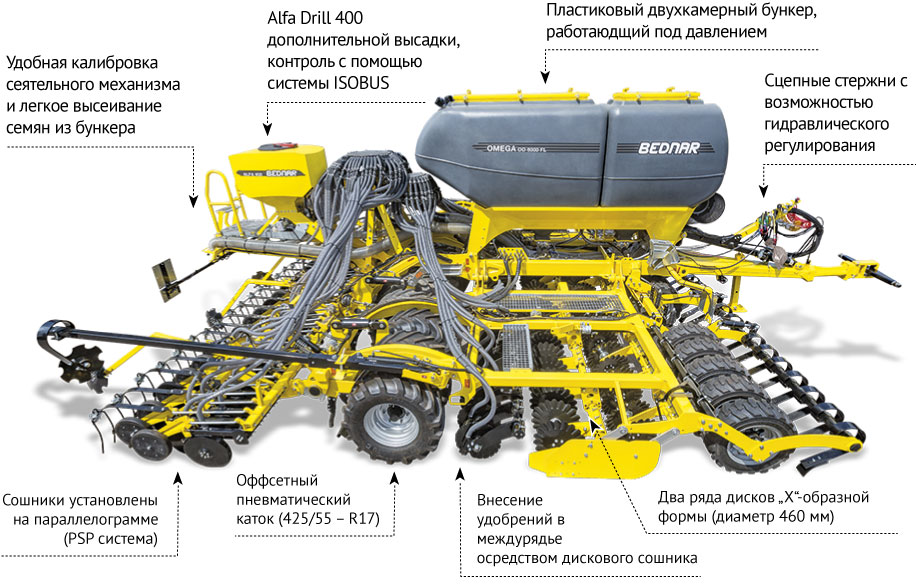

The main advantage of the Omega planter is the placement of the disc sections in an X-shape.
Thanks to the pressurized hopper, even higher doses of fertilizer can be applied.
Thanks to the PSP (Precise Seed Placement) system, the coulters sow seeds at the same sowing depth across the entire width of the machine and ideally outline uneven ground both longitudinally and transversely.
- Possibility to apply fertilizer between the rows between the seeds or together with the seeds.
- X-shaped arrangement of disk sections.
- Quality sowing on dry soil due to high downforce on the seed coulter (up to 130 kg).
- Pressure hoppers.
- Precise seed placement at the same depth across the entire span of the machine thanks to the PSP system.
- Optional row spacing of 12.5cm or 16.5cm depending on moisture conditions and crop type
- Easy calibration and emptying of the hopper at the rear of the planter.
- ISOBUS — simple operation.
OMEGA OO_FL | OO 4000 FL | OO 6000 FL | |
---|---|---|---|
WORKING WIDTH | m | 4 | 6 |
TRANSPORT WIDTH | m | 3 | 3 |
TRANSPORT LENGTH | m | 9,2 | 9,2 |
WORKING DEPTH OF DISKS | cm | 2 — 10 | 2 — 10 |
DISTANCE BETWEEN ROWS | cm | 12.5/16.7 | 12.5/16.7 |
NUMBER OF SEEDING BOT 12.5 / 16.5 | pcs | 32/24 | 48/36 |
NUMBER OF DISKS | pcs | 32 | 48 |
DISTANCE BETWEEN DISKS | cm | 25 | 25 |
DISC DIAMETER | cm | 46 | 46 |
HOPPER VOLUME | l | 4000 | 5000 |
FILL HEIGHT | cm | 295 | 305 |
TOTAL WEIGHT** | kg | 5300 — 7600 | 7700 — 9600 |
RECOMMENDED POWER OUTPUT* | hp | 130 — 180 | 200 — 280 |
*depends on soil conditions
**depending on machine equipment
