Rimeco Tucano

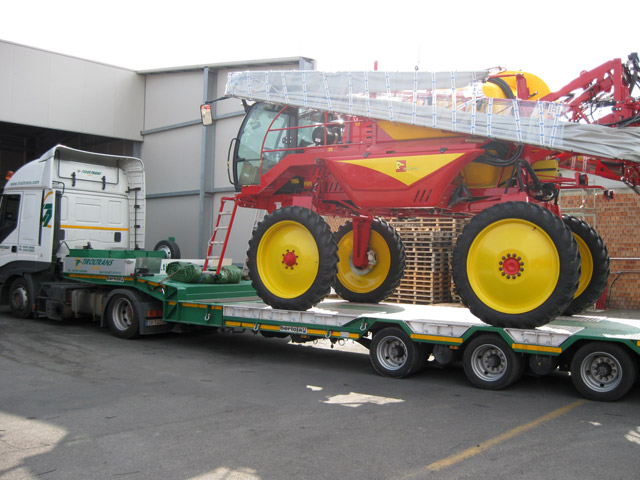

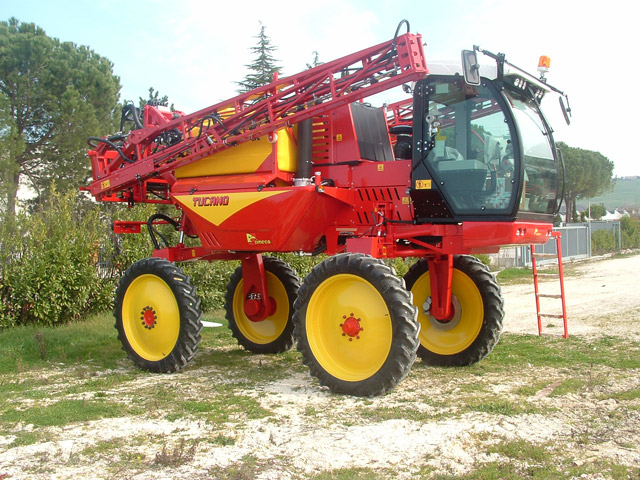

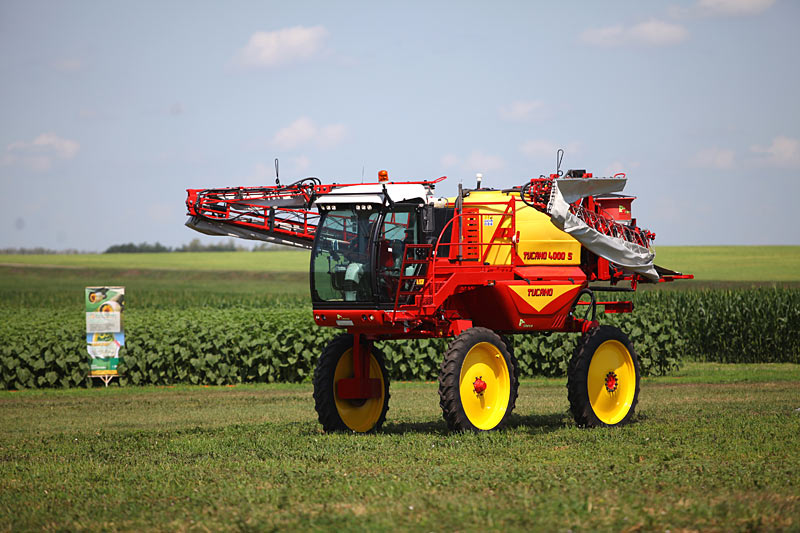

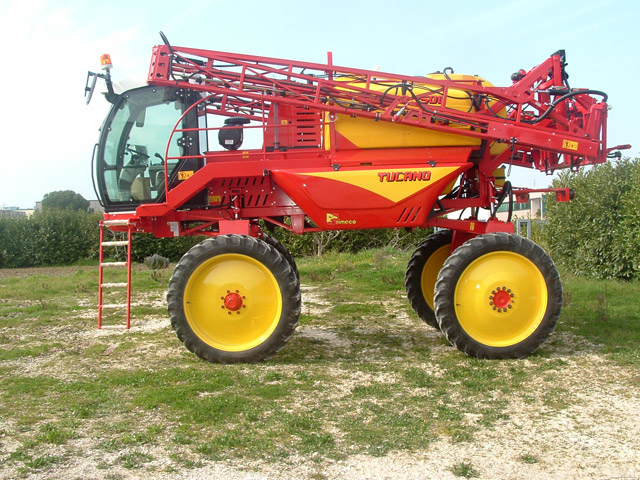

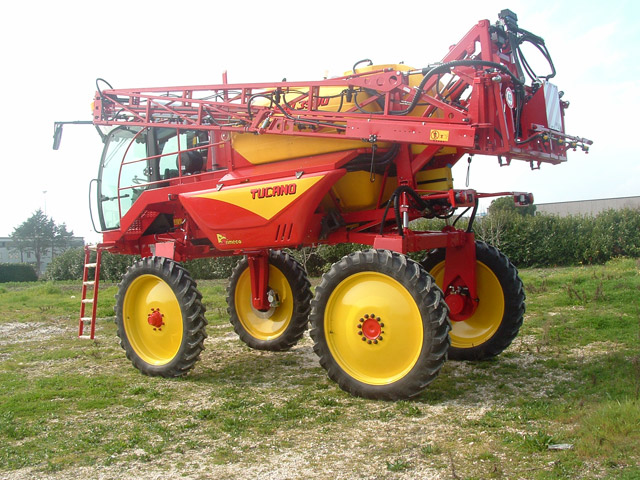

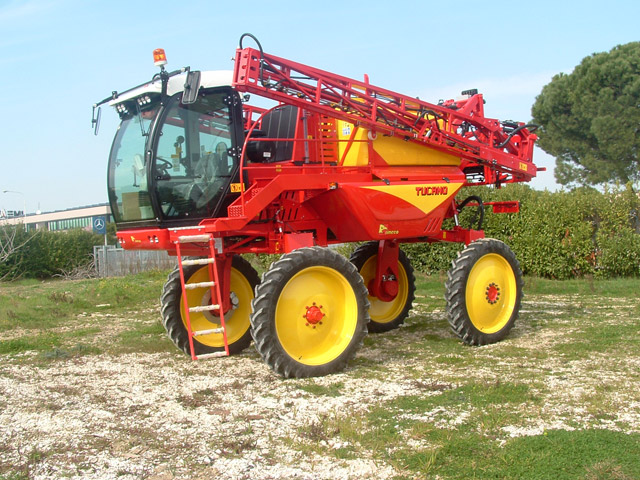

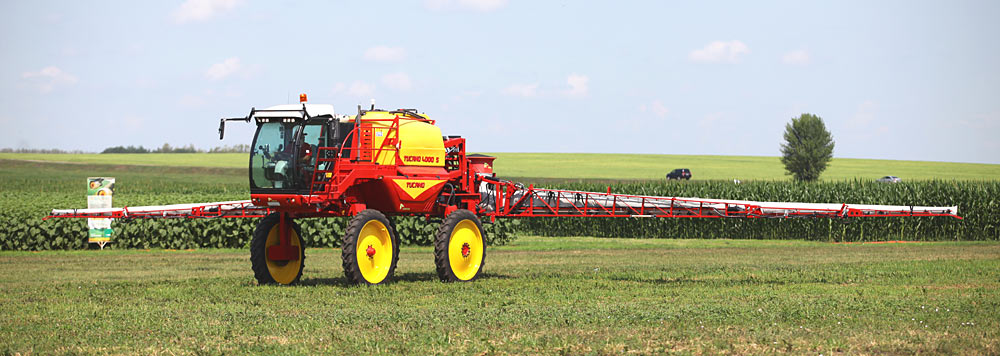

Rimeco Tucano series self-propelled sprayers




Basic equipment:

Type:
Self-propelled sprayer for application by spraying aqueous solutions of herbicides, fungicides, as well as for applying liquid fertilizers

Bar:

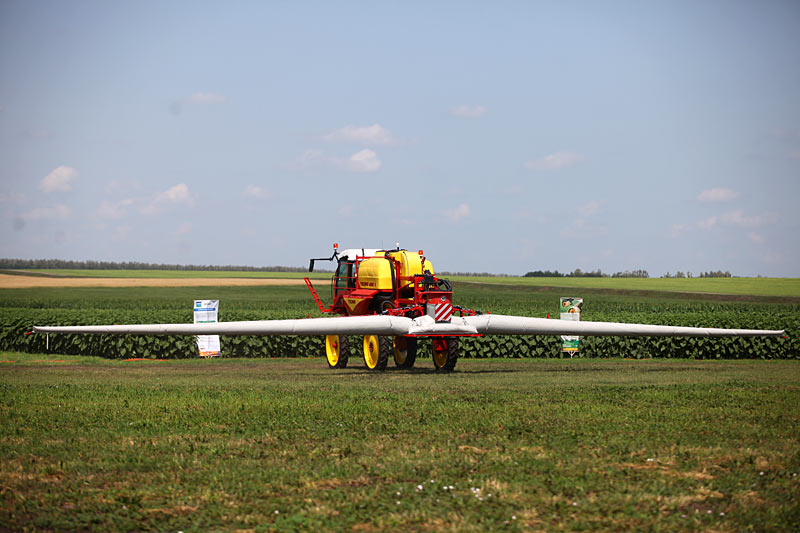

Composite, hydraulically folded, collision protection, mechanical compensation, reinforced. Painted with chemically resistant powder paint.

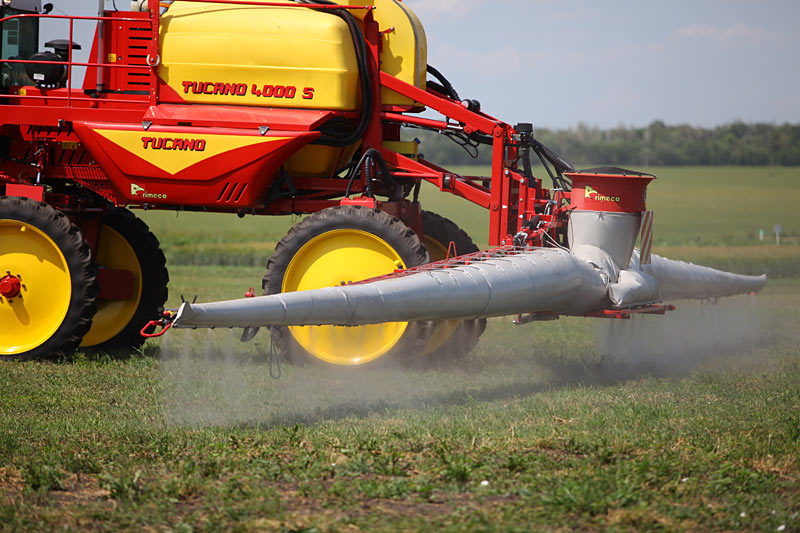

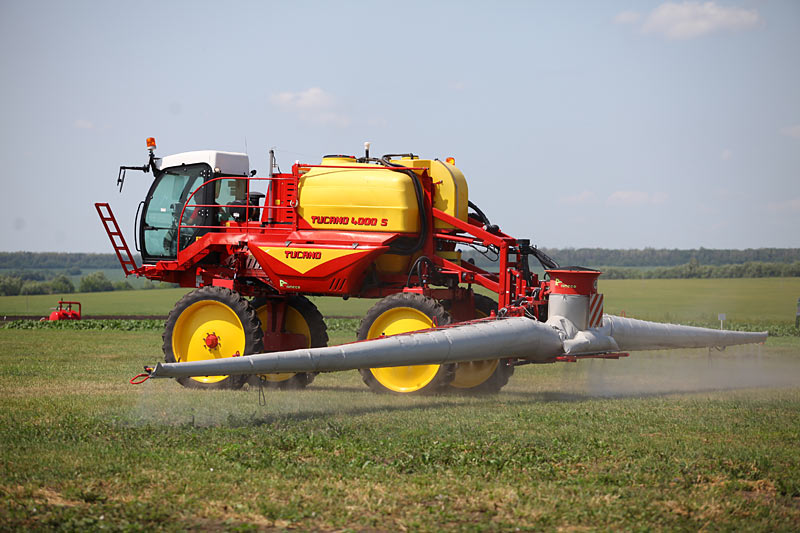

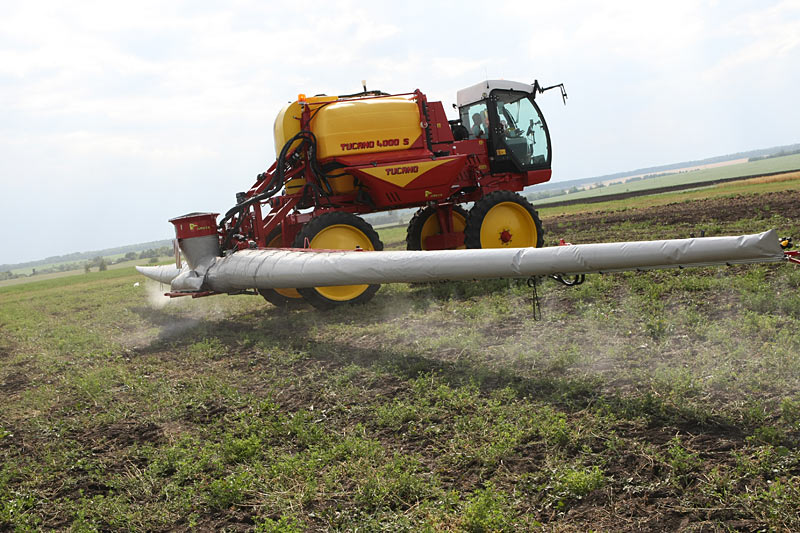

AIR ASSIST air blowing system for atomizers for operation at wind speeds up to 12 m/s, air supply fan speed control system — installed on booms 21, 24 meters wide

Automatic boom stabilization system for working on uneven ground

Control boom hydraulic system directly from the drive joystick. 5 boom sections

Attachment of nozzles with simultaneous installation of three different nozzles (3 sets of nozzles included)

Capacity:
Plastic one-piece, washing tank — 325 l, hand washing tank — 20 l, mixer for mixing concentrates — 30 l

Working fluid supply system:
Diaphragm pump with electro-hydraulic feed control system, solution preparation system for liquid and bulk concentrates, tank injection system, multi-stage filtration system.

Pump capacity — 250 l / min. Pump feed pressure and boom pressure indicators installed in the cab.

Electronic system SPRAYDOS for controlling the supply of working fluid, a computer is installed in the cab (monitoring the flow rate, changing parameters in motion, calculating areas, memory, self-diagnosis)

Engine:
Type — diesel, turbocharged water-cooled, in-line 6-cylinder, slave. Volume — 6.7 l, Manufacturer — IVECO, Power, kW (l s) at 2200 rpm — 129 (175), ECE R24 standard, Fuel capacity, l — 260

Transmission:
Type — hydrostatic drive with rear wheel drive. Hydraulic pump — SAUER — S90R130, hydraulic motors — POCLAIN — MS18.2. Working speed up to 21 km/h, transport speed up to 40 km/h.

The system of hydropneumatic shock absorbers on the front and rear axles.

Brake system:
2 types — hydrostatic and hydromechanical disc with hydraulic drive on the front wheels, negative parking brake on the rear wheels

Steering:
Type electro-hydraulic with front wheel drive. Minimum turning radius, m — 6.4

Cabin:

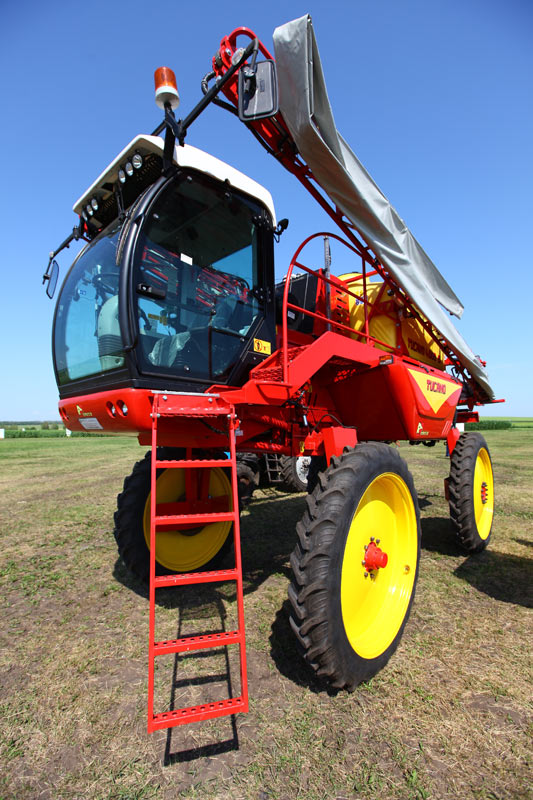

Sealed type, rollover protection, adjustable driver’s seat, additional seat, adjustable steering column, control system for work, working fluid, air blowing, movement, air conditioning with carbon filter, hydraulically lifted ladder, radio preparation.

Wheels:
Standard size 270/95 R44

Overall dimensions:
Ground clearance: — 1.50 m (270/95 R44).
Adjustable track, m — 2.25 — 3.20.
Width, m — 2.55. Height, m ​​- 3.8. Length, m — 7.6

Empty machine weight, kg:
6900.0

Sprayer models

  • TUCANO — 3500 liters, 24 meters rod
  • TUCANO — 3500 liters, 24 meters boom, AIR ASSIST system
  • TUCANO — 3500 liters, 28 meters rod

Note:
Machines can be completed with rods: 21, 24, 28 meters. The rims can be of radius R44 to R54. Optional installation of various navigation systems (parallel driving, field map, automatic steering, spraying control via navigation system)
