Rimeco Sparviero

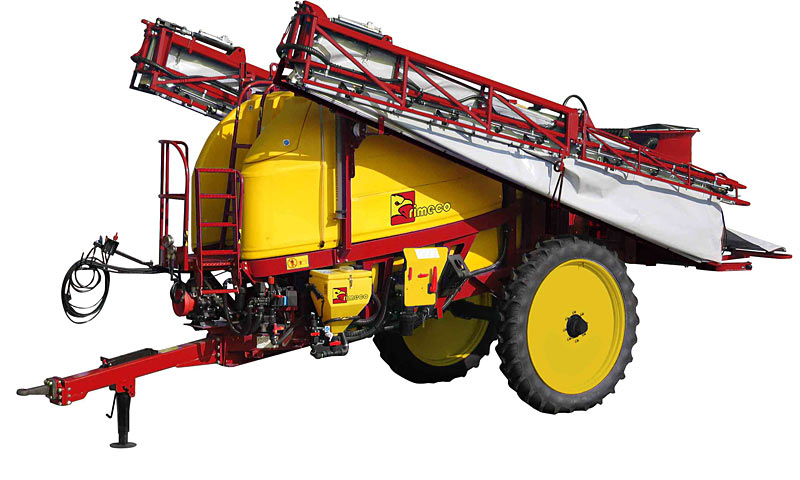

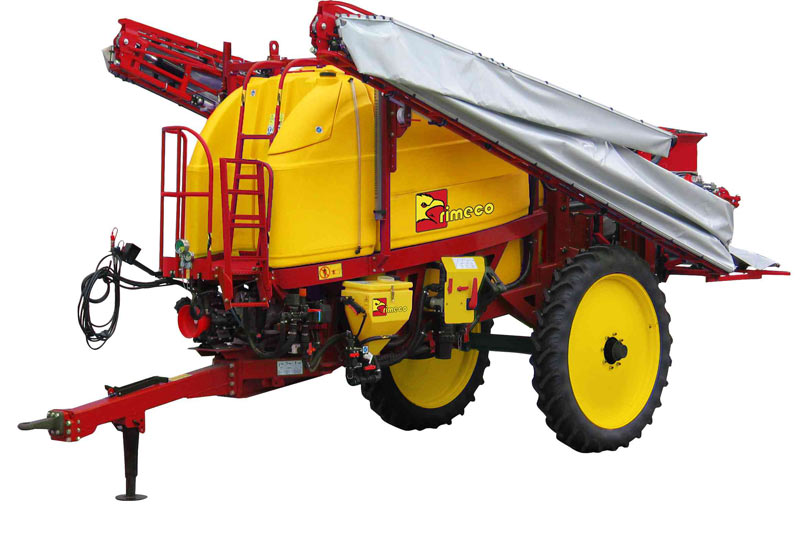

Trailed sprayers SPARVIERO made by RIMECO, Italy

Basic equipment:

Type:
Trailed sprayer for applying drugs by spraying aqueous solutions of herbicides, fungicides.

Boom:
composite, hydraulically foldable, collision protection with return mechanism, mechanical compensation, reinforced. For protection, the frame is covered with several layers of powder paint.

Autonomous hydraulic control system. Stroke — 1.2 m. The maximum lifting height of the boom relative to the ground — 2.0 m. The required number of hydraulic ports — 1. The boom is lifted using hydraulics, a 7-position electro-hydraulic boom control switch (installed in the tractor cab — lifting-lowering, folding- folding, tilting). Hydraulic cylinder for forced tilting of the boom. Hydraulic lock for rod.
Boom stabilization system for working on uneven ground, pendulum type. System of pneumatic and gas shock absorbers for work on uneven surfaces and difficult conditions (3 pneumatic shock absorbers).

Hydromechanical lock for fixing the rod, separate mechanical adjustment of the rod wings.
Fixing nozzles with simultaneous installation of three different nozzles (3 sets of nozzles included — 02-04-06 KEMATAL). 7-section boom fluid distribution (5-section for 24m boom). Additional line filters for each of the sections. Protection of the edges of the rod against falling by inertial springs.

Air blowing system:
Air blowing system for injectors with slotted aluminum deflectors. Mounted on a bar. Designed to operate the sprayer in winds up to 12 m/s. Casing made of rubberized tarpaulin, independent hydraulic drive of one fan (driven by tractor PTO). Fan speed change system.

Frame:
all-metal, covered with several layers of powder paint for protection. Staircase with platform. Rigid hitch, height-adjustable drawbar — hitch diameter 40 mm. Self-adjusting wheel suspension.

Container:
one-piece plastic, washing container — 500 l, hand washing container — 20 l, mixer for mixing concentrates — 30 l. Graduated liquid level scale. Anti-wave partition of the main tank, hydraulic mixers. Work clothes box.

Working fluid supply system:
diaphragm type pump with electric supply control system, tank injection and washing system, multi-stage filtration system, additional suction filter. The pump capacity is 280 l/min (250 l/min for a 24 m boom).

Electronic control system for the supply of working fluid — SPRAYDOS, the computer is installed in the tractor cab (monitoring the flow rate, changing parameters on the move, counting areas). 7-section distributor, 5-section for 24 m boom.
Pump feed pressure and boom pressure indicators mounted on the front of the sprayer and visible from the cab.

Concentrate mixing system:
includes a mixer for mixing liquid and powder concentrates with a flushing system, additional hydraulic mixers in the tank.

Wheels:
standard size 300/95 R46.

Drive shaft (PTO) 6×8.

Kit for autonomous filling of the tank (hose with filter — 8.0 m).
