Cosmo RX Series

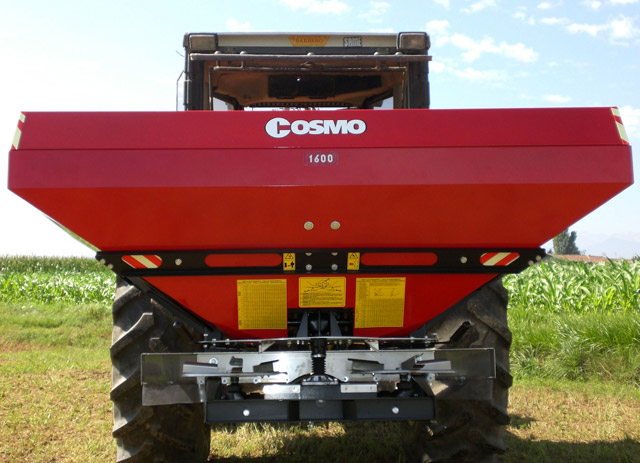

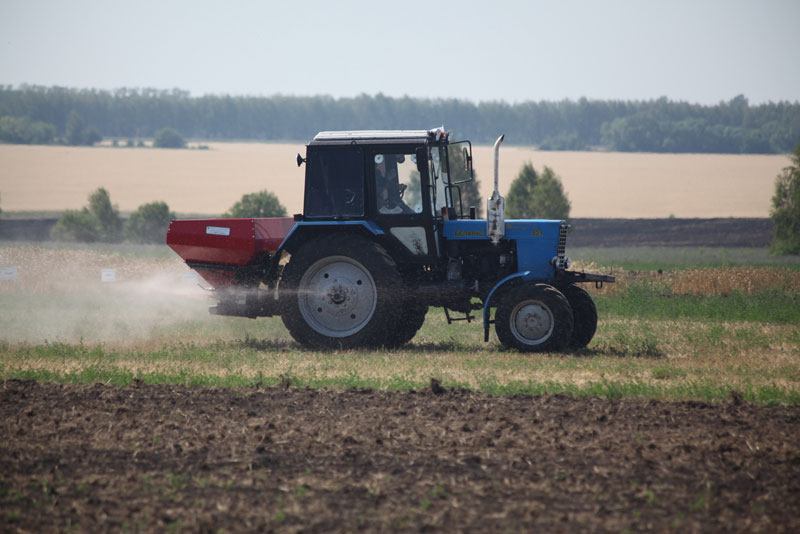

Mounted fertilizer spreaders of the RX series manufactured by COSMO, Italy

Basic equipment:

• Type: Mounted spreaders are designed for spreading loose granular fertilizers. Three-point hitch Category II
• Frame: solid, steel hopper mounted on frame
  powder coated.
• Bunker: all-metal, pyramidal shape. Inside
  bunker two filter meshes, two agitators for better breaking of clods.

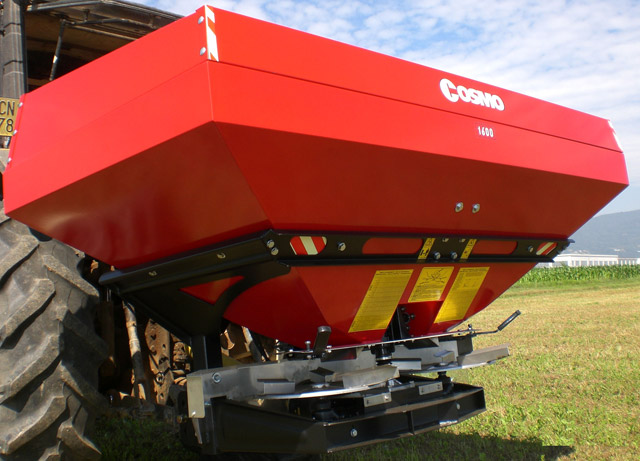

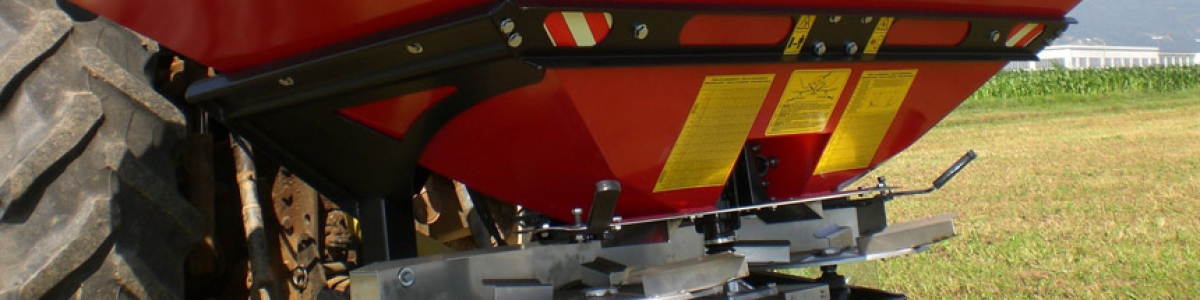

• Spreading system: consists of two plates driven by the PTO
  tractor through bevel gears. Each plate has three
  adjustable spreading plates (can be adjusted steplessly). Per
  the plates have a protective screen. Plates, spatulas, protective screen are made
  stainless steel.
• Dosing system: adjustable mechanically with levers.
  Hydraulically adjustable curtains for opening and closing the feed hopper,
  hydraulically adjustable working width change system. Norm
  application from 3 kg to 9210 kg per ha.
• SPREADING WIDTH – 12 or 24 m
• WEIGHT, kg – 310.0(Model 1100), 323.0 (Model 1600), 350.0 (Model 1900), 374.0 (Model 3000)
• LENGTH–1.3 m
• WIDTH– 2,3 m
• HEIGHT, m – 1.05(Model 1100), 1.27 (Model 1600), 1.37
  (Model 1900), 1.52 (Model 3000)
• PTO kit (6×8 splines)

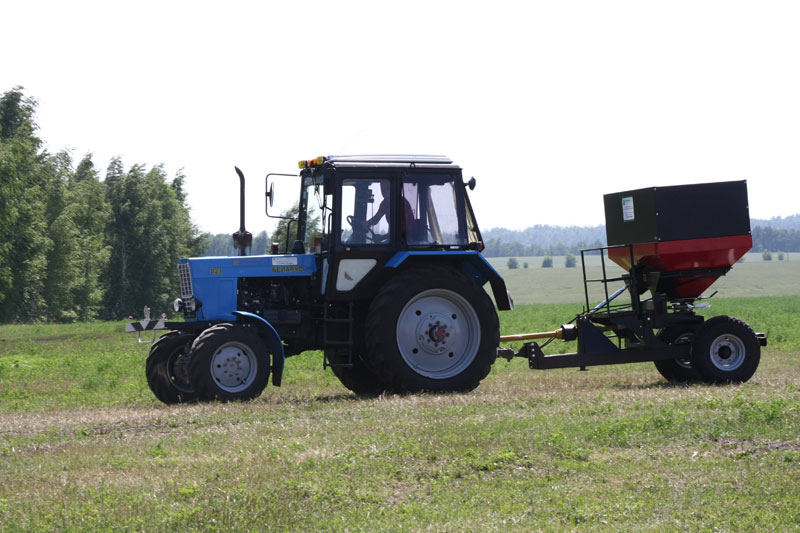

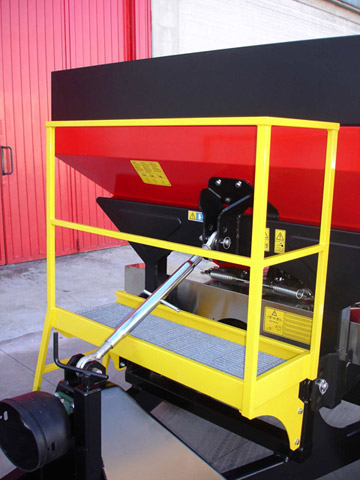

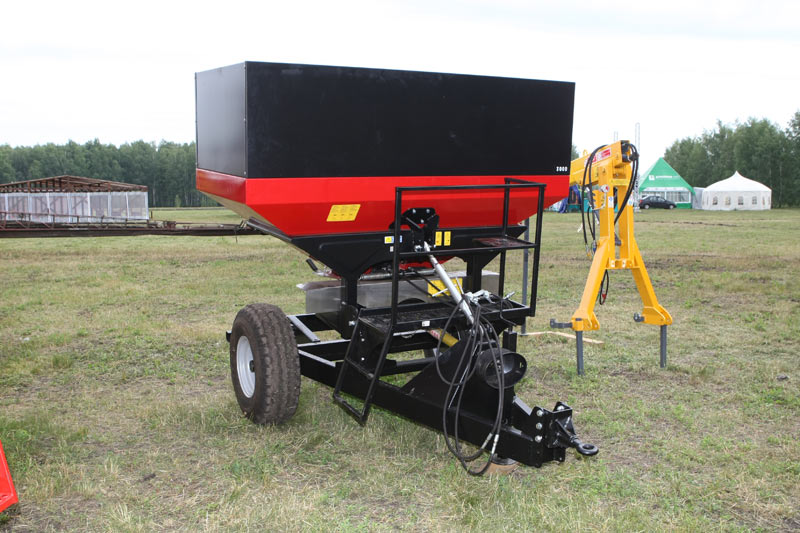

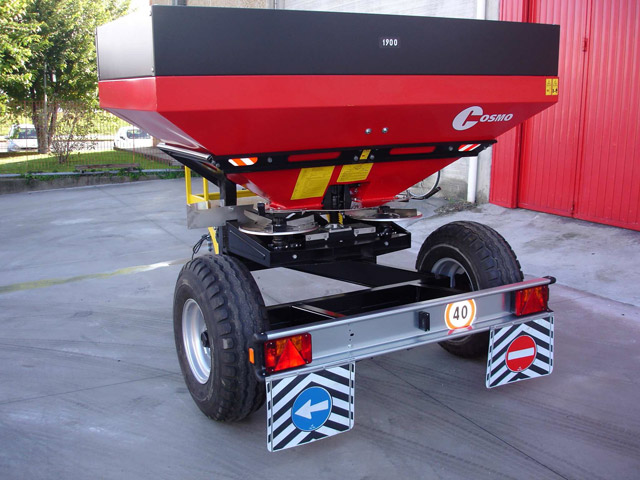

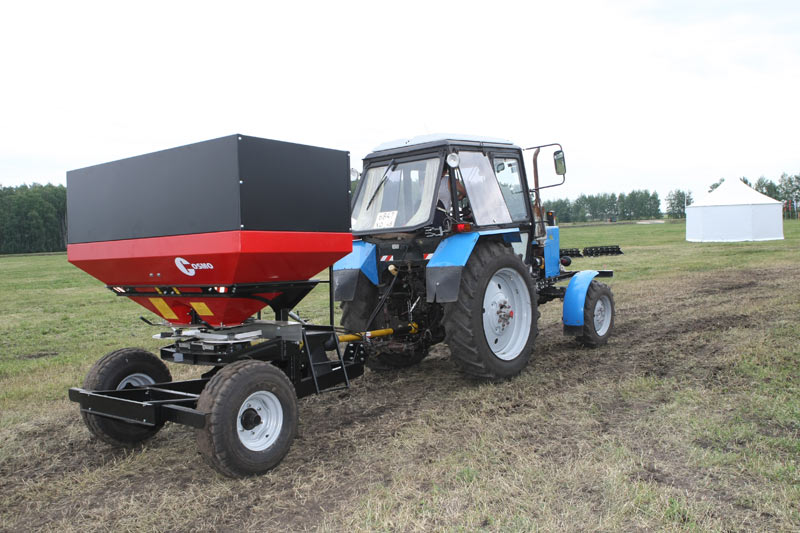

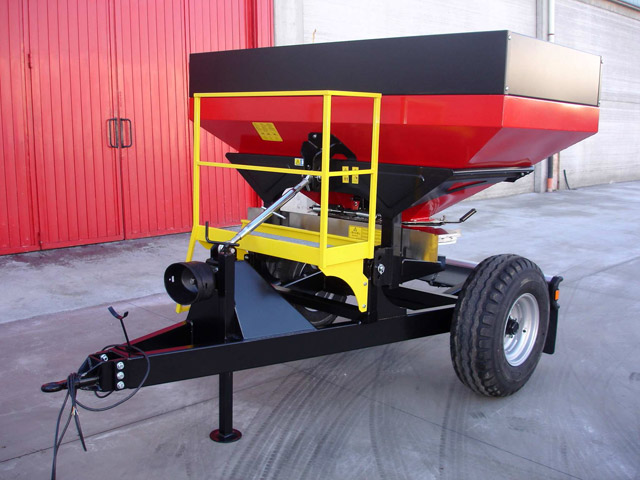

• TRANSPORT TROLLEY– RXT models,
  designed to work with spreaders with a capacity of up to 4000 liters. Type –
  trailed, complete with PTO and intermediate gear. Download area
  spreader. Adjustable three-point hitch II category. Transport wheels.

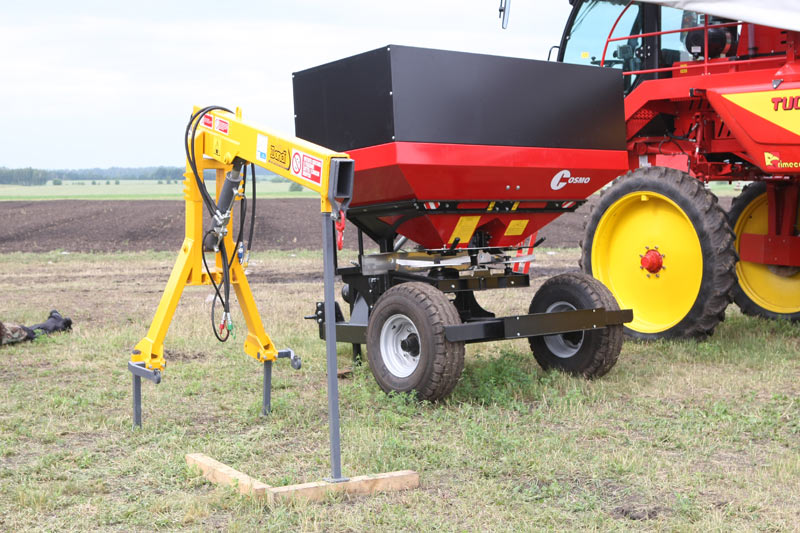

• HYDRAULIC CRANE FOR LIFTING BAGS WITH
  fertilizer designed to lift
  loads weighing up to 1000 kg. Hydraulic drive from the tractor. telescopic
  the arrow is controlled by a hydraulic cylinder, a rotating hook. Connection to Category II 3-point hitch
